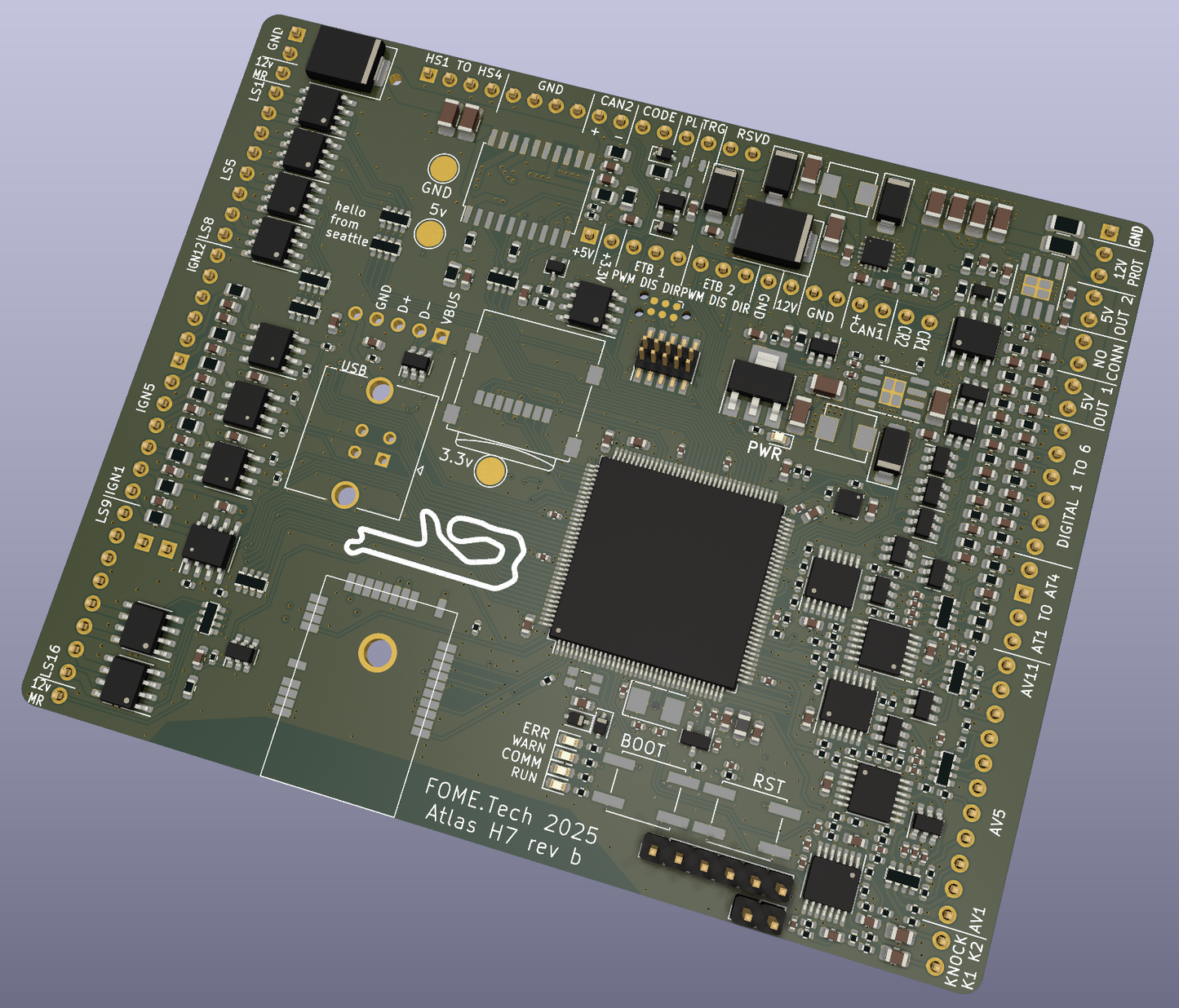

FOME "Atlas" ECU Brain Module

ECU brain module for the open source FOME ECU firmware.

System:

• 480 MHz + 1MB RAM high performance CPU
  • Lots of room for large user Lua scripts!
• Integrated (optional) WiFi connectivity
• SD card for self-contained data logging (accessible over USB)
• 2x CAN up to 1mbit/s (hardware supports CAN FD, no software support yet)

Inputs:

• 11 Analog voltage inputs

• 4 Analog temperature sensor inputs with internal pull-up resistor

• 8 Digital inputs with integrated pull-up
• 2 Knock sensing inputs
• Onboard barometric pressure + temperature sensor

Outputs:

• 12 Low side outputs (injectors, solenoids, relays, etc)
• 12 5v push-pull ignition outputs (directly drive smart coils or IGBT for dumb coils)
• 4 12v High side outputs
• Logic-level outputs for 2x electronic throttle (ETB/DBW), driver chips on ECU base board
• 4 Logic-level outputs for extra output drivers on the ECU base board

FOME EFI Discord community: https://discord.gg/EEg2fbhQD4

Firmware source code repository: https://github.com/fome-tech/fome-fw

Firmware releases (use atlas_h7 bundle): https://github.com/fome-tech/fome-fw/releases/latest

This device is intended for off-road motorsports use and is not intended for use on public roads or on emissions-controlled vehicles.
